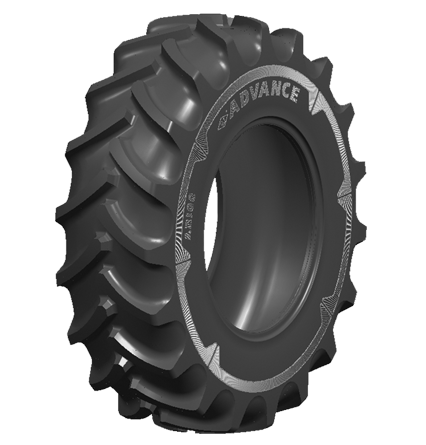

AR100

AR100

The AR100 was specially developed for agricultural use and as an economic alternative to the R-1W. This Advance tire is characterized by its wide tread, which contributes to significantly reduced surface pressure and protection of the plant roots.

A deep tread provides powerful traction and the new tread compound significantly increases tire life.
DOWNLOAD DATA SHEET
General comment on the specified technical data

Technical data on this website are based on manufacturer data or the ETRTO standard and are for informational purposes only.

We accept no liability for errors, omissions or incorrect information on this website. All information can be changed at any time without prior notice.

Manufacturer and ETRTO specifications are final.

Do you have questions about our tyres? Please feel free to contact us at any time - we will take care of your request as soon as possible!

TECHNICAL SPECIFICATIONS

METRIC SIZE INCH SIZE AT THE AND TYPE REC RIM FROM (MM) SW (MM) INFLATION PRESSURE (KPA)
--- 9.5R24 93 A8 / B TRY W8 1040 240 650
--- 9.5R24 101 A8 / B TRY W8 1040 240 825
--- 9.5R24 107 A8 / B TRY W8 1040 240 975
320 / 85R24 12.4R24 119 A8 / B TRY W11 1145 315 160
340 / 85R24 13.6R24 114 A8 / B TRY W12 1210 345 120
340 / 85R24 13.6R24 121 A8 / B TRY W12 1210 345 160
340 / 85R24 13.6R24 124 A8 / B TRY W12 1210 345 210
380 / 85R24 14.9R24 126 A8 / B TRY W13 1245 378 160
380 / 85R24 14.9R24 130 A8 / B TRY W13 1245 378 240
--- 15R24 144 A6 TRY DW14 1330 406 280
--- 15R24 148 A6 TRY DW14 1330 410 330
380/85R26 14.9R26 127 A8 / B TRY W13 1316 378 160
380/85R26 14.9R26 132 A8 / B TRY W13 1316 378 210
280 / 85R28 11.2R28 116 A8 / B TRY W10 1200 285 160
380 / 85R28 14.9R28 128 A8 / B TRY W13 1350 378 160
380 / 85R28 14.9R28 133 A8 / B TRY W13 1350 378 210
380/85R30 14.9R30 123 A8 / B TRY W13 1418 378 120
380/85R30 14.9R30 129 A8 / B TRY W13 1418 378 160
380/85R30 14.9R30 134 A8 / B TRY W13 1418 378 210
460/85R30 18.4R30 142 A8 / B TRY W16L 1545 467 160
420 / 85R34 16.9R34 132 A8 / B TRY W15L 1587 429 120
420 / 85R34 16.9R34 139 A8 / B TRY W15L 1587 429 160
420 / 85R34 16.9R34 143 A8 / B TRY W15L 1587 429 210
460 / 85R34 18.4R34 144 A8 / B TRY W16L 1645 467 160
460 / 85R34 18.4R34 149 A8 / B TRY W16L 1645 467 210
460 / 85R38 18.4R38 146 A8 / B TRY W16L 1750 467 160
460 / 85R38 18.4R38 151 A8 / B TRY W16L 1750 467 210
